Overview and Features

3.1. Overview and Features#

../../_images/ROB0148-EN.jpg

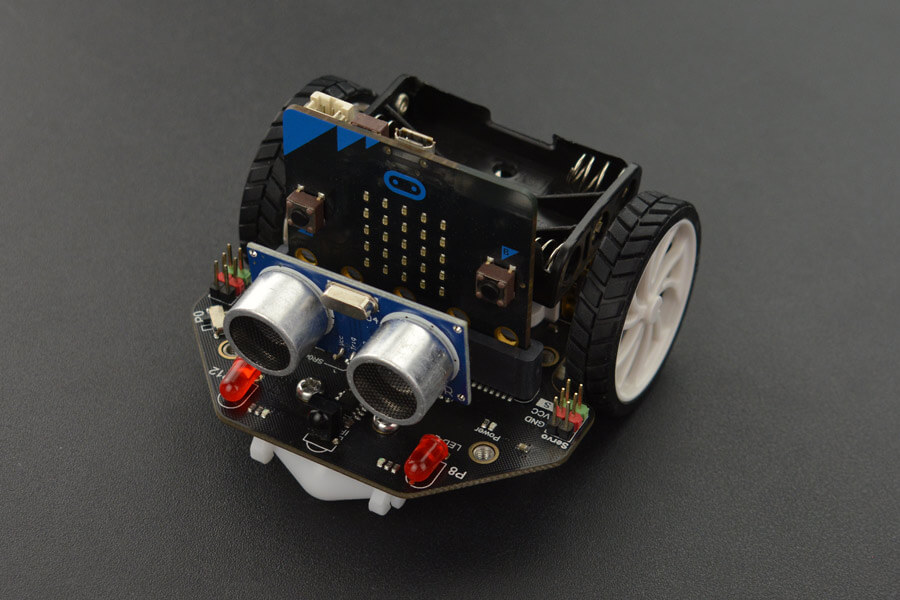

The Maqueen is a two wheeled robot that accepts a micro:bit for control. Despite its compact size, it comes with lots of hidden features onboard and expansion capability.

3.1.1. Features#

../../_images/maqueen_labelled.png

On board the Maqueen you can find:

  • 2x N20 All-metal Gear Motor

  • 2x Infrared Line Sensors

  • 2x LED Driving Head Lights

  • 4x RGB Lights

  • 1x Ultrasonic Interface and Sensor

  • 1x I2C Interface

  • 2x Servo Interface

  • 3x Gravity Extension Interfaces (P0, P1, P2)

as well as various switches to control features.

3.1.2. Mechanic Expansion#

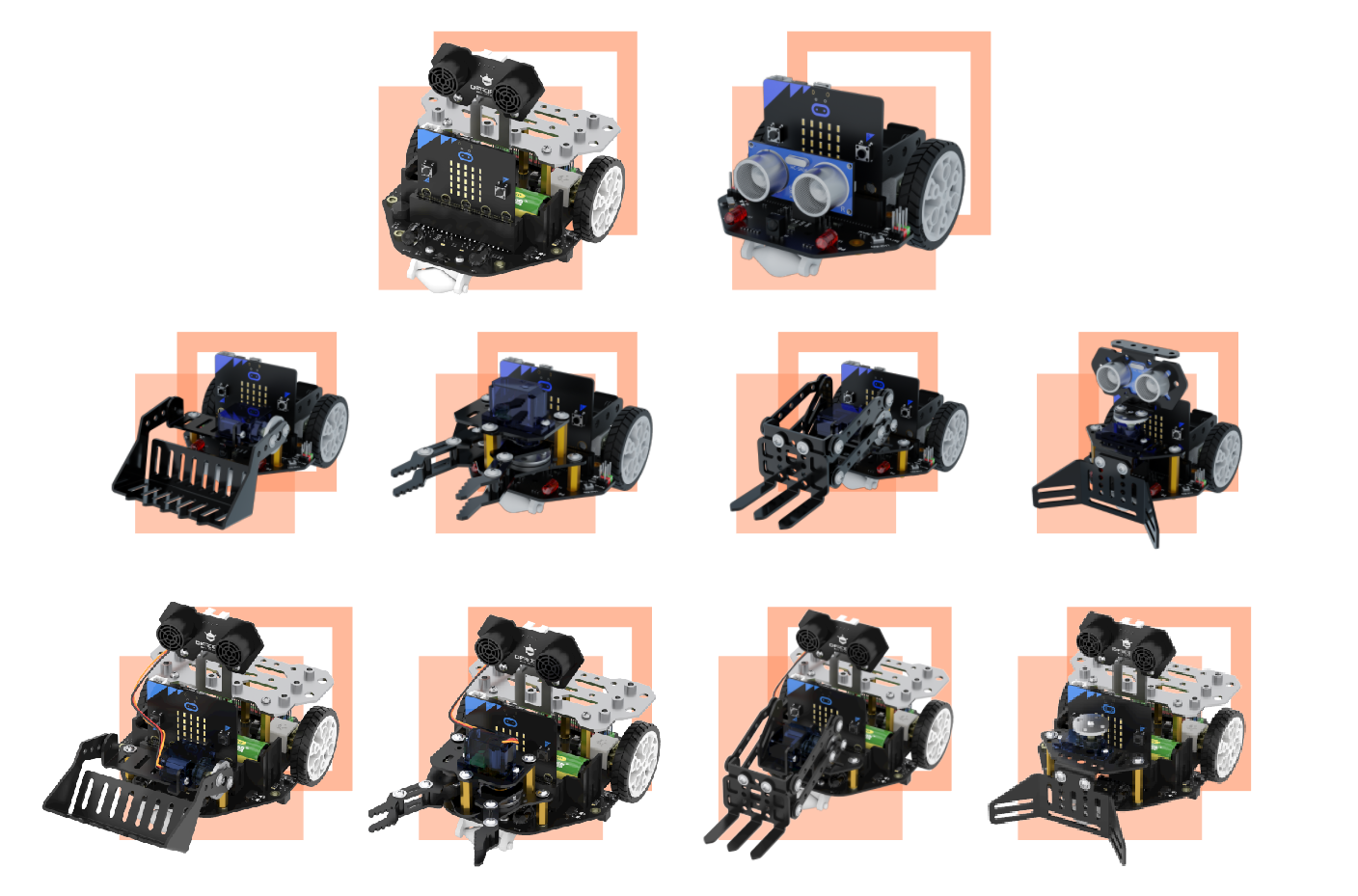

The Maqueen also supports attaching various actuators or mechanisms to interact with the real world. Below you can see a preview of some of the available attachments.

../../_images/mechanic_expansion.png
